過氧化氫作為重要的化工原料，在能源、環境、醫療領域均中發揮著重要的作用。在眾多過氧化氫合成技術中，以氧氣與水作為原料，太陽光作為能量源的人工光合成技術顯示出巨大的環保優勢以及經濟價值，因此受到越來越多科研工作者的重視。在人工光合成雙氧水的過程中，粉末光催化劑首先受光激發而產生電子空穴對。在光催化劑內建電場的作用下，這些光生電子空穴對會被部分分離，遷移到光催化劑表面而進行反應。然而目前的體系中，大部分光生電子空穴對在被分離前進行了復合，導致當前人工光合成過氧化氫的太陽能轉化效率依然低下而無法滿足工業化應用。因此在該研究課題上亟需開發有效增強電子空穴分離效率的策略。然而在反應中，粉末光催化劑的表面在納米尺度內同時富集電子和空穴，這對電荷富集位點的精確調控造成了困難。近日，浙江大學環資學院褚馳恒團隊基于光電化學-半導體物理理論，提出了一個通過調節光催化劑表面能帶結構來增強電荷分離的普適性策略。以通過BiVO4進行光催化合成雙氧水為例，具有（銀/鈀）核/殼結構納米顆粒(Ag/Pd)和氧化鈷顆粒（CoOx）分別被選擇性地負載在晶面化的BiVO4顆粒的還原性和氧化性晶面上。相比單獨的Pd作為還原端助催化劑，Ag/Pd能夠有效降低還原性晶面的肖特基勢壘，—同時提供足夠的表面反應活性點位生成雙氧水；CoOx則快速捕捉氧化性晶面上的空穴的同時，提供表面反應活性點位生成氧氣。在保證表面催化性能的前提下，通過調節還原性和氧化性晶面間的能帶結構，，有效地增強了BiVO4中光生電子空穴對分離效率，將太陽能轉化過氧化氫效率提高到0.73 %，突破了無機材料合成過氧化氫記錄。上述工作近日發表在Nature Communications上發表。1） BiVO4能帶結構的選擇性調控。作者通過光沉積的方式選擇性調控BiVO4不同晶面的內建電場，如同電化學沉積一樣實現氧化與還原位點的能帶結構的精準調控。利用晶面化BiVO4的光生電子與空穴會選擇性地富集在還原性{010}與氧化性{110}晶面上，作者以AgNO3與PdCl42-分別作為Ag與Pd的前驅體，成功通過兩步光化學沉積將金屬Ag與Pd選擇性的沉積在{010}晶面上形成核/殼結構的Ag/Pd納米顆粒。同時，以Co(NO3)2為前驅體在{110}晶面上被負載CoOx（Fig.1a）。TEM-EDS的線掃與面掃確認了Ag/Pd和CoOx納米顆粒分別選擇性地負載在BiVO4的{010}和{110}晶面上（Fig.1b-d）晶面上。BiVO4中的內建電場受到與其接觸的金屬影響，功函數高的金屬會形成高肖特基勢壘從而阻礙電子往界面遷移，反之則利于電子遷移。由于Ag的功函數較低，產生的肖特基勢壘也較低（Fig. 1e），從而促進電子往{010}面，空穴往{110}面進行遷移(Fig. 1f)。光生電子空穴最終會分別移動到Pd和CoOx上，進行雙氧水生成和氧氣生成的反應。

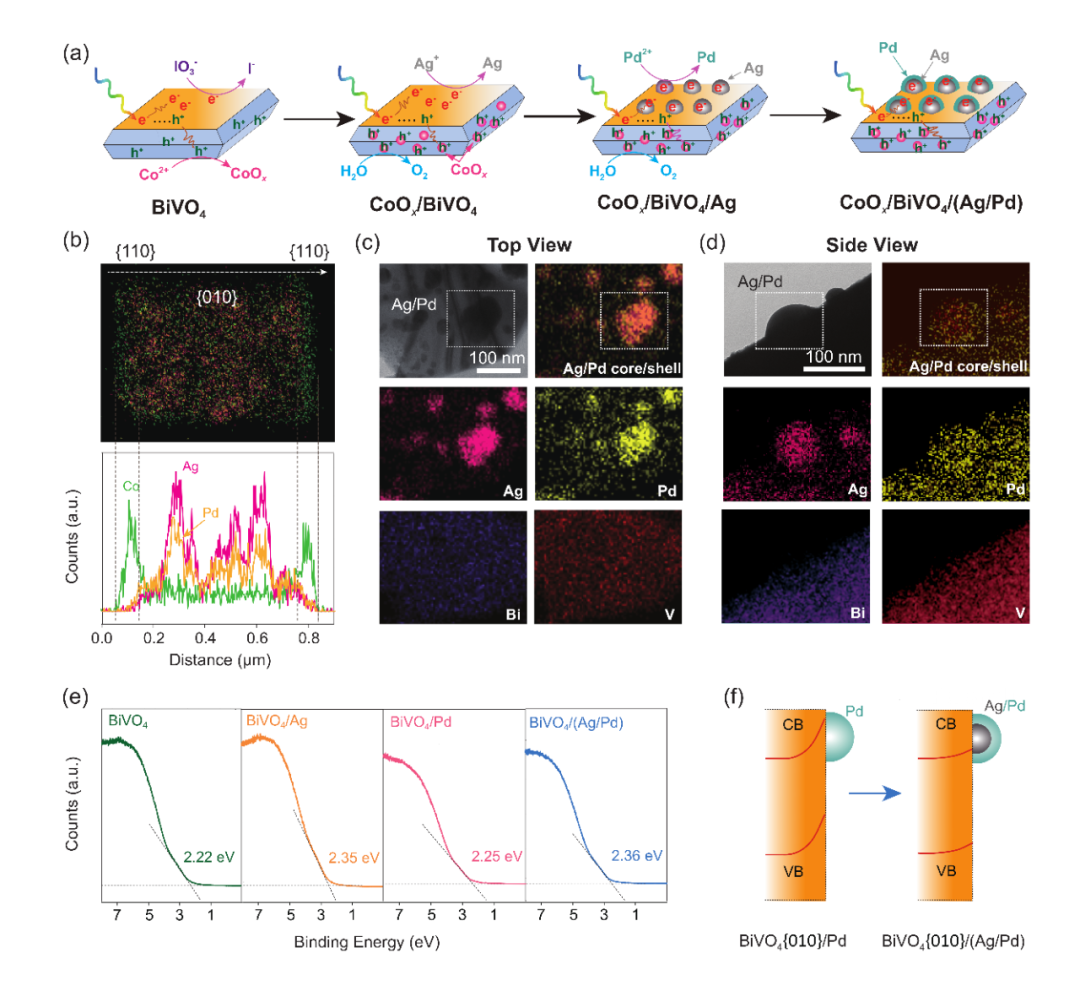

Fig. 1. Facet-selective loading of cocatalysts on BiVO4 and interfacial energetics tuning with Ag/Pd core/shell cocatalyst. (a) Stepwise and facet-selective photodeposition of Co, Ag and Pd on BiVO4. (b) Energy-dispersive X-ray spectroscopy (EDS) elemental mapping and line profile along with the white arrow of CoOx/BiVO4/(Ag/Pd). We increased Co (2 wt%), Ag (1 wt%), and Pd (1 wt%) loadings for more clear observation. (c)-(d) Scanning transmission electron microscopy (STEM)-EDS elemental mapping of Ag/Pd particles loaded on BiVO4.We increased Ag (1 wt%) and Pd (1 wt%) loadings for more clear observation. (e) Ultraviolet photoelectron spectroscopy (UPS) spectra of BiVO4, BiVO4/Ag, BiVO4/Pd and BiVO4/(Ag/Pd). (f) Schematic illustration of {010} reduction facet interfacial energetics tuning through Ag/Pd core/shell cocatalyst construction on BiVO4.為了考察能帶結構變化與光催化性能的關系，接下來作者對比了不同催化劑的H2O2產出效果進行評估。作者之前的研究表明，CoOx/BiVO4/Pd具備較為優越光催化生成雙氧水性能。新開發的CoOx/BiVO4/(Ag/Pd)的活性則是CoOx/BiVO4/Pd的2.1倍。由于二者的表面反應都在Pd和CoOx上進行，表面催化性能十分相近，活性的提升歸功于Ag增強電荷分離效率。UPS測試顯示Ag拉開了價帶（Evb）到費米能級（Efermi）的能級差值，表明低功函的Ag降低了BiVO4還原性{010}晶面上的肖特基勢壘，進而增強光生電荷分離。在最優狀態下，CoOx/BiVO4:Mo/(Ag/Pd)的全光譜量子產率達到3 %，其中420 nm處的量子產率超過了12 %，而太陽能轉化效率達到了0.73 %，遠高于現階段報道的無機光催化劑。

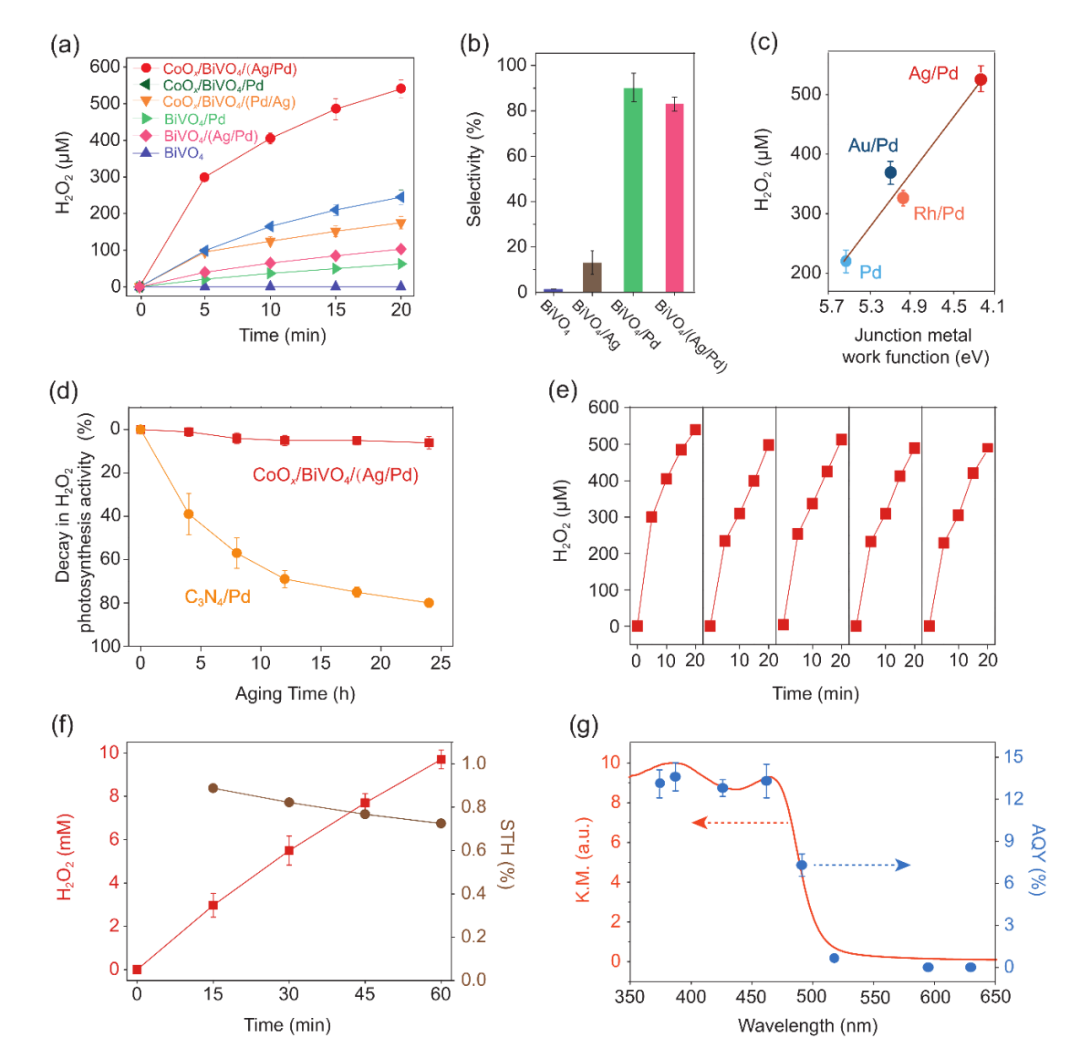

Fig. 2. Overall H2O2 photosynthesis activities. (a) Time courses of photocatalytic H2O2 generation. Reaction conditions: photocatalyst, 1 mg/mL; 50 ml DI water saturated with O2; light source, LED visible light, 300 mW cm?2, λ > 400 nm. (b) Selectivity of H2O2 production for BiVO4, BiVO4/Ag, BiVO4/Pd, and BiVO4/(Ag/Pd). Reaction conditions: photocatalyst, 1 mg/ml; 50 mL DI water with 0.1 M H3BO3and 0.075 M ScCl3 saturated with O2 (pH 6.8), 10 v/v% methanol as electron donor; light source, LED visible light, 100 mW/cm2, λ > 400 nm. H2O2 selectivity is defined as the ratio of electrons utilized for H2O2 synthesis to the total number of electrons consumed (i.e., electrons donated by methanol). (c) Preparation of various core/shell cocatalyst and correlation between H2O2photosynthesis performance and core junction metal work function. Reaction conditions: photocatalyst, 1 mg/ml; 50 mL DI water saturated with O2(pH 6.8); light source, LED visible light, 300 mW/cm2, λ > 400 nm; reaction time, 20 min. (d) Decay in H2O2 photosynthesis activity of CoOx/BiVO4/(Ag/Pd) and C3N4/Pd under ?OH-rich conditions. Aging conditions: photocatalyst, 1 mg/mL; 50 ml DI water with 25 mM H2O2; light source, 254 nm ultraviolet radiation light; ?OH was generated via the reaction H2O2 + hν→2?OH. (e) Repetitive use of CoOx/BiVO4/(Ag/Pd) for H2O2 photosynthesis. Reaction conditions: photocatalyst amount, 1 mg/ml; 50 ml DI water saturated with O2; light source, LED visible light, 300 mW cm?2, λ > 400 nm. (f) Time courses of photocatalytic H2O2 generation over CoOx/Mo:BiVO4/(Ag/Pd) and the corresponding STH efficiency. Reaction conditions: photocatalyst, 10 mg; photocatalyst, 1 mg/ml; 10 mL DI water with 0.1 M H3BO3and 0.075 M ScCl3 saturated with O2 (pH 6.8); light source, xenon lamp solar simulator, 100 mW cm?2, AM 1.5 G; irradiation area, 4.5 cm?2. (g) Apparent quantum yield (AQY) of H2O2photosynthesis over CoOx/Mo:BiVO4/(Ag/Pd) as a function of the incident light wavelength. Reaction conditions: photocatalyst, 10 mg; photocatalyst, 1 mg/ml; 10 mL DI water with 0.1 M H3BO3and 0.075 M ScCl3 saturated with O2 (pH 6.8); light source, monochromatic LED light.在活性評估之后，作者進一步使用瞬態吸收光譜追蹤空間電荷信號衰減并探查空間電荷傳輸與能帶結構之間的關系。通過對比CoOx/BiVO4/Pd與CoOx/BiVO4(Ag/Pd)的光生載流子的瞬態吸收光譜信號衰減情況可知，CoOx/Mo:BiVO4/(Ag/Pd)的光生載流子的壽命遠大CoOx/BiVO4/Pd，表明Ag/Pd核殼結構的引入提高了空間電荷的分離能力 （圖3a 和b）。[PZ1] CoOx與Pd雖然提供了較高的表面反應動力學但是結合先前的工作分析，反應的限速步仍然是空穴端的電荷傳輸，Ag/Pd納米顆粒的引入顯著改善了光生空穴的在CoOx表面的富集，同時在一定程度上提高了光生電子在Pd表面的富集，兩種電荷傳輸增益效果共同作用提升了催化效率。

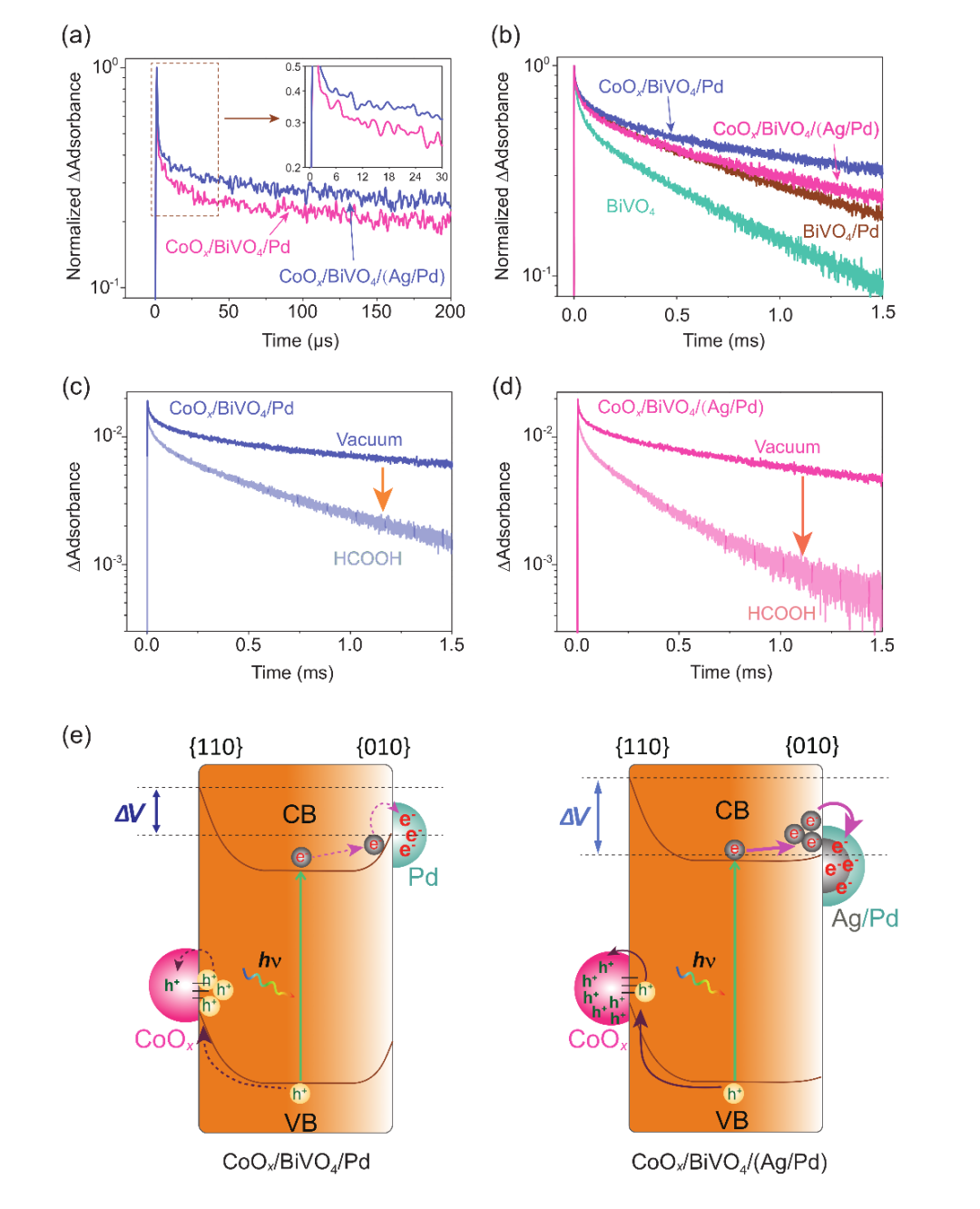

Fig. 3. Charge-carrier dynamics. (a)-(b) Transient profiles of (a) free/shallowly trapped electrons probed at 2000 nm and (b) trapped holes probed at 505 nm. Photoexcitation of the samples was performed using 470 nm laser pulses (duration: 6 ns, fluence: 3 mJ/pulse, frequency: 1 Hz). Measurements were carried out in vacuum (base pressure: ~ 10?5Torr). (c)-(d) The transient profiles of trapped holes probed at 505 nm for (c) CoOx/BiVO4/Pd and (d) CoOx/BiVO4/(Ag/Pd) in vacuum and in the presence of HCOOH vapor. Photoexcitation of the samples was performed using 470 nm laser pulses (duration: 6 ns, fluence: 3 mJ/pulse, frequency: 1 Hz). Measurements were carried out in vacuum or in the presence of 20 Torr HCOOH. (e) Schematic illustration of the charge-separation process enhanced by surface energetics tuning.作者進一步在COMSOL中搭建了BiVO4顆粒的3D模型，對電荷分離過程進行分析。粉體光催化劑集成了氧化與還原活性位點，分別對應了電化學的陽極與陰極，作者因此從電化學角度解析空間電荷分離以及Ag/Pd的能帶結構調控設計，從電勢差的角度解析晶面控制與核殼結構相結合的空間電荷分離路徑設計，展示了如何產生更大的電壓。通過有限元模擬結合電化學測試模擬了CoOx/BiVO4/Pd與CoOx/BiVO4/(Ag/Pd)的電荷傳輸過程。模擬結果表明，Ag/Pd核殼結構的引入提升空間電荷分離效率，對于單一BiVO4顆粒來說大幅度增強了其{010}與{110}晶面之間的光電壓，在{010}與{110}晶面上分別富集了更多的電子與空穴進而促進Pd上的雙氧水生成和CoOx上的氧氣生成反應，最終提高H2O2的全合成效率。

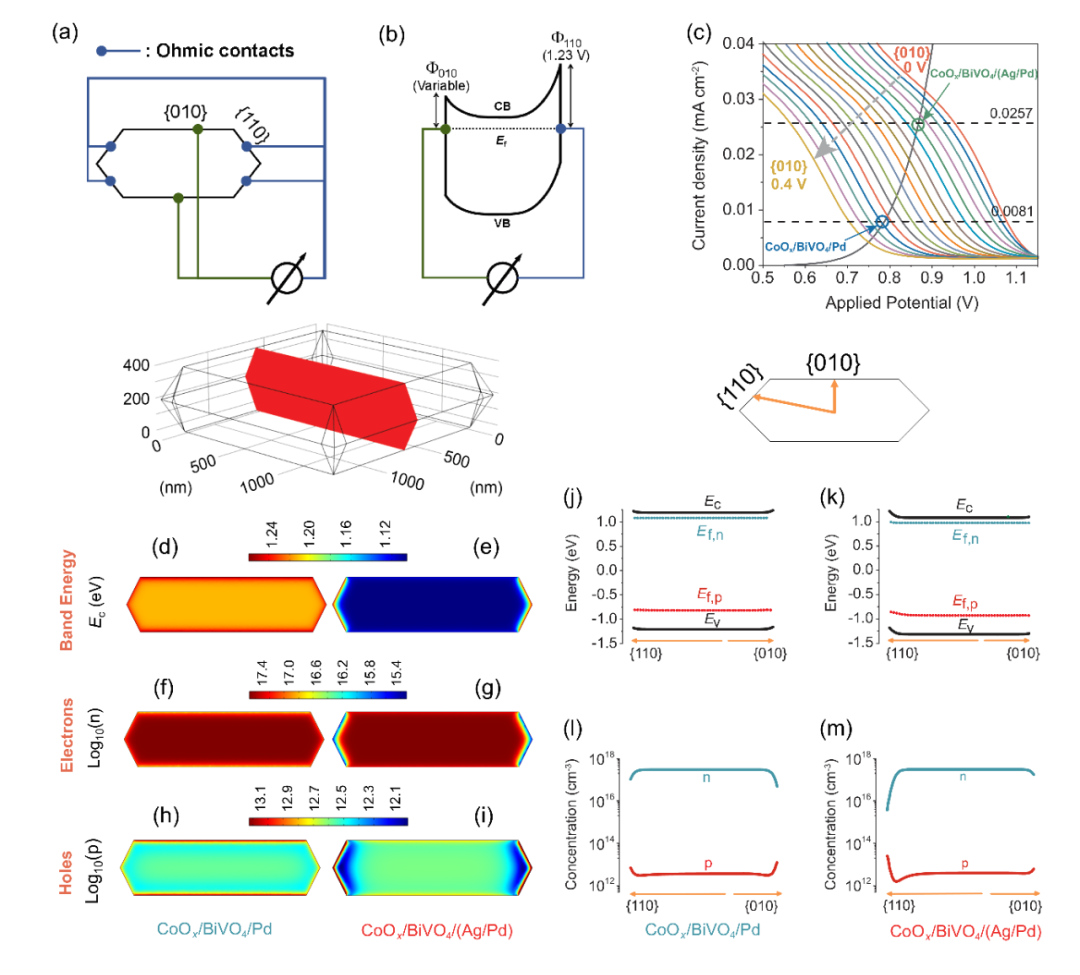

Fig. 4. Simulations of photocarrier distributions. (a)-(b) Schematic model and band diagram of BiVO4as a solar cell. (c) Current density vs. applied potential with barrier heights at cathodic sites (F010) varied from 0 to 0.4 V (grey dotted arrow). The barrier height of the anodic side was fixed at 1.23 V. Two dash lines labeled with 0.0081 and 0.0257 mA cm-2 were used to indicate the photocurrent densities converted from experimental H2O2 generation rates of CoOx/BiVO4/Pd and CoOx/BiVO4/(Ag/Pd), respectively. The operating conditions of CoOx/BiVO4/Pd and CoOx/BiVO4/(Ag/Pd) were marked with two void circles. Their detailed optoelectronic properties are presented in the following figures. (d)-(i) 2D cross-sectional plots of the optoelectronic properties of a BiVO4 particle, including conduction band energy (eV) (d)-(e), electron concentration (f)-(g), and hole concentration (h)-(i). (j)-(m) 1D plots of energy band diagram (j)-(k) and mobile charge carrier density (l)-(m).5）人工光合作用中能帶調控的通用設計思路。基于以上結果（圖1-圖4），我們提出了一種通用的能帶調控方法(圖5c) : (i) 應用晶面工程將表面能帶結構分離實現電子和空穴的空間分離; (ii) 選擇性地在氧化還原所需晶面上沉積具有相應功能的金屬/金屬氧化物物種來調節電荷分離的表面能帶結構; 以及 (iii) 選擇性地在金屬/金屬氧化物物種上沉積助催化劑來調節表面反應動力學。

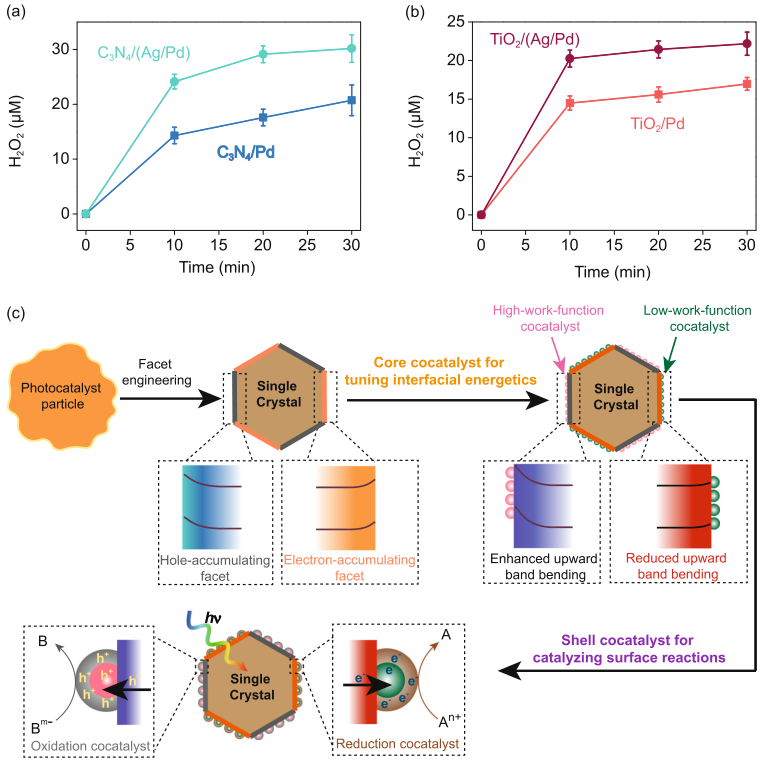

Fig. 5.Generality of interfacial-energetics-tuning strategy for enhancing artificial photosynthesis. Time courses of photocatalytic H2O2generation by (a) C3N4/Pd and C3N4/(Ag/Pd) and (b) TiO2/Pd and TiO2/(Ag/Pd). Reaction conditions: photocatalyst, 1 mg/mL; 50 ml DI water saturated with O2; light source, LED visible light (300 mW cm?2, λ > 400 nm) for C3N4and UVA light (λ = 365 nm) for TiO2. (c) A general approach for effective interfacial-energetics-tuning and enhanced artificial photosynthesis.本研究利用晶面控制手段精確調節光催化劑表面能帶結構進而增強光生電荷分離效率，將能帶彎曲調控手段從光電催化領域引入光催化領域，大幅度地提升了光催化劑的活性。將該策略應用在光催化合成過氧化氫領域中，顯著提高了太陽能到過氧化氫化學能的轉化效率，為過氧化氫綠色合成提供了新的思路。考慮到人工光合成反應的共同性，該策略也可能適用于光催化分解水以及二氧化碳還原。
褚馳恒：浙江大學百人計劃研究員，從事環境微界面化學與污染控制方向研究。先后在北京大學、東京大學、蘇黎世聯邦理工學院獲得學士、碩士、博士學位，2016年博士畢業后在耶魯大學從事博士后研究，2019年入職浙江大學資環學院。課題組主頁https://person.zju.edu.cn/chihengchu
潘振華：日本中央大學助教。多年來從事光催化反應以及相關半導體物理的研究，然而鮮有建樹。因沉迷游戲而工作懶散拖沓，備受詬病卻屢教不改。
劉添：中國科學技術大學蘇州高等研究院，特任副研究員，2020年博士畢業于湖南大學化學化工學院，2022年從浙江大學環境與資源學院博士后出站，主要從事環境功能材料設計與應用方面的研究。
